Where is the serpentine belt routing diagram?
Gates K101065RPM Serpentine Belt
Status:
Open Aug 28, 2025 - 04:05 PM
1answer
Answer
Aug 28, 2025 - 04:05 PM
The serpentine belt routing diagram is typically found in the vehicle's owner's manual or service manual. It may also be located on a sticker or decal under the hood of the vehicle, often near the radiator or on the underside of the hood itself. If unavailable, you can also find the diagram online by searching for your vehicle's make, model, and year.
View More Product Details

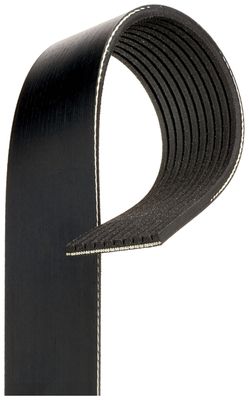

Gates K101065RPM Serpentine Belt
