Answer
Oct 31, 2024 - 06:32 AM
Strapping two AudioPipe APCL 18001D amplifiers to run at a 1-ohm load is possible, but it requires careful consideration for safety and performance. Here’s what you need to know:
Key Points:-

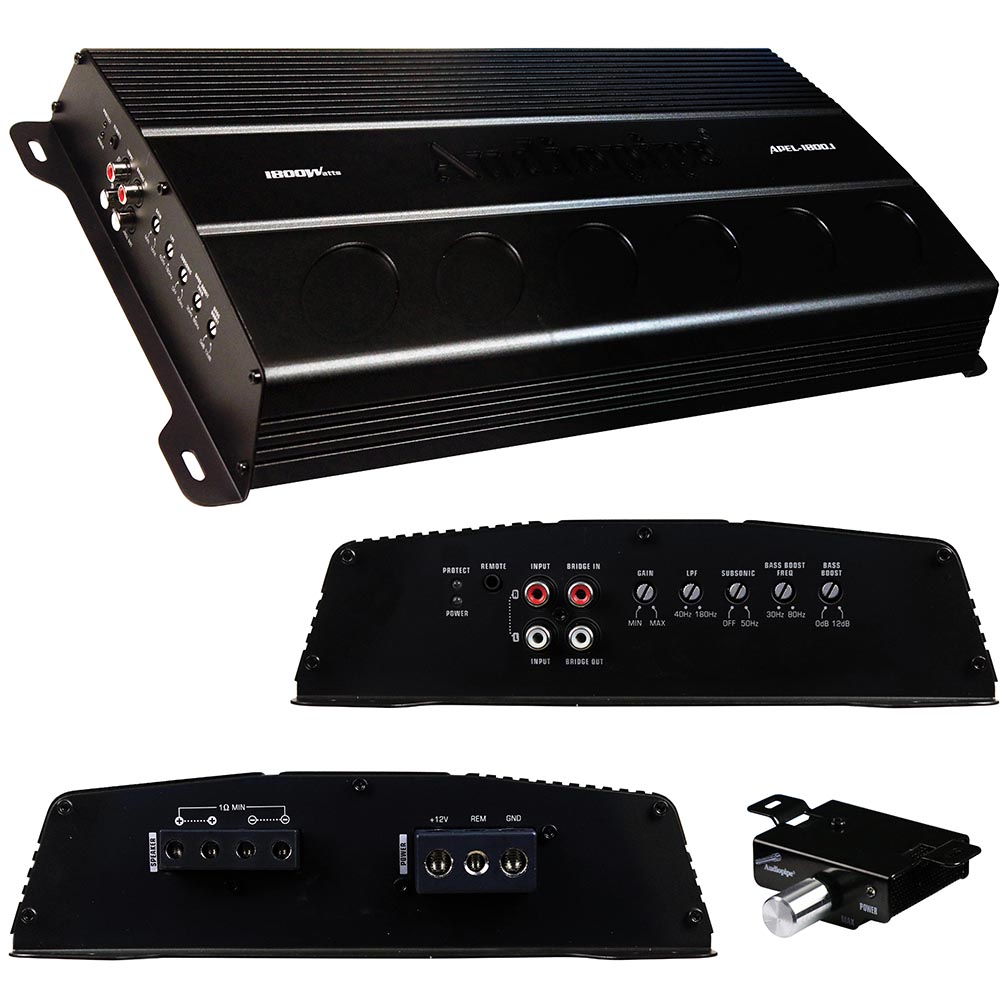

Amplifier Specifications: The AudioPipe APCL 18001D is a powerful monoblock amplifier designed to handle low-impedance loads. However, when strapping two amplifiers together, each amplifier will see half the total impedance.
-
Load Handling: Strapping two APCL 18001D amplifiers at a 1-ohm load means each amplifier effectively operates at 0.5 ohms. This is below the typical safe impedance load that most amplifiers can handle, which can lead to potential overheating, distortion, or damage to the amplifiers.
-
Manufacturer’s Recommendations: Always check the manufacturer’s specifications and guidelines. Most amplifiers are not rated to handle loads below 1 ohm per channel safely. Operating below their minimum recommended impedance can trigger the protection circuitry or damage internal components.
-
Cooling and Protection: If you plan to run these amplifiers strapped at such a low impedance, ensure you have adequate cooling solutions, such as external fans or heatsinks, to prevent overheating. Keep an eye on the amplifier's thermal protection indicators and consider upgrading the electrical system (e.g., alternator, wiring, and batteries) to support the higher current draw.
While AudioPipe APCL 18001D amplifiers are robust and capable of significant power output, strapping them at a 1-ohm load (0.5 ohms per amp) is generally not advised unless explicitly supported by the manufacturer’s documentation. For safe operation, keep the combined load at or above the rated impedance each amplifier can handle (typically 1 ohm minimum per amp).
If you need high power at 1 ohm, consider using a single amplifier rated for that load or ensure that the wiring configuration results in an impedance that matches the manufacturer's recommended operation range.
