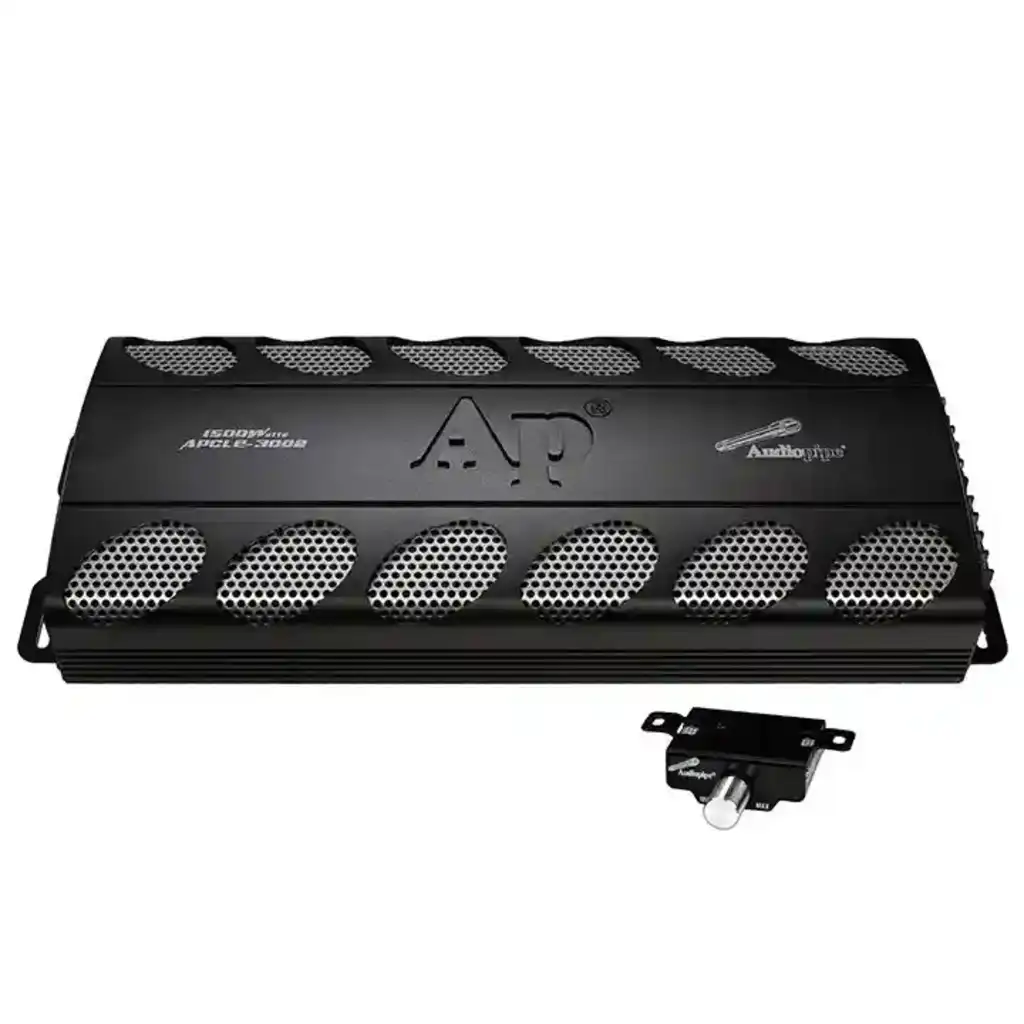

To bridge an APCLE3002 Audiopipe 1500 Watt 2-Channel car amplifier, follow these steps:
**1. Turn Off the Amplifier and Vehicle- Safety First: Ensure the amplifier is turned off and disconnect the vehicle’s battery to prevent any electrical shorts or damage.
- Owner’s Manual: Refer to the owner’s manual for the APCLE3002 to confirm it supports bridging and to understand the recommended impedance load for bridged operation.
- Speaker Wires: You’ll need to use appropriate gauge speaker wire for the connection. Make sure you have the correct length and gauge to handle the power requirements.
- Terminals: On the APCLE3002, find the speaker output terminals. There will be a positive (+) and negative (-) terminal for each channel.
-
Connect Positive Wires:
- Channel 1 Positive: Connect the positive wire from your speaker or subwoofer to the positive terminal of Channel 1.
- Channel 2 Positive: Connect the positive wire from the same speaker or subwoofer to the positive terminal of Channel 2.
-
Connect Negative Wires:
- Channel 1 Negative: Connect the negative wire from your speaker or subwoofer to the negative terminal of Channel 2.
- Channel 2 Negative: Do not use the negative terminal of Channel 1; it is not connected in the bridged setup.
- Gain Control: Adjust the gain to match the output levels with your audio source. Be cautious to avoid distortion.
- Crossover Settings: Set the crossover to the appropriate frequency range depending on whether you are driving a subwoofer or a full-range speaker.
- Power Up: Reconnect the vehicle’s battery and turn on the amplifier. Ensure all connections are secure and correctly installed.
- Sound Check: Play audio through the system to ensure the amplifier is functioning correctly. Listen for any distortion or unusual sounds that might indicate a problem with the bridging.
- Optimize Settings: Make any final adjustments to the amplifier’s settings to ensure optimal performance and sound quality.
- Final Check: Ensure all connections are secure and properly insulated to prevent shorts or disconnections.
- Impedance: Ensure that the impedance load of your speaker or subwoofer matches the amplifier’s specifications when bridged. The APCLE3002 is typically designed to handle a 4-ohm load when bridged.
- Power Handling: Verify that your speaker or subwoofer can handle the increased power output when the amplifier is bridged.
By following these steps, you can successfully bridge your APCLE3002 amplifier to drive a subwoofer or speaker with increased power output, enhancing your audio system's performance.
