Answer
Aug 28, 2024 - 03:41 PM

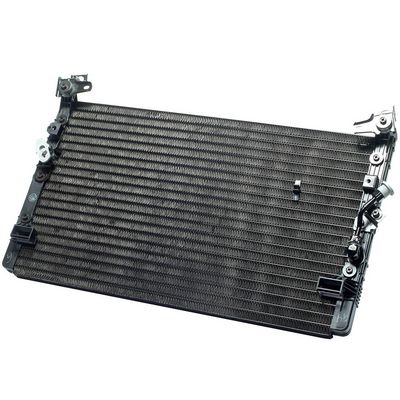

The A/C condenser coil unit in the DENSO 477-0514 A/C Condenser is a critical component designed to facilitate the heat exchange process in the vehicle's air conditioning system. Here's a detailed overview of what the condenser coil unit is and its function:
AC Condenser Coil Unit Overview:-
Purpose and Function:
- The A/C condenser coil unit in the DENSO 477-0514 serves to cool and condense refrigerant gas back into a liquid state. After the refrigerant absorbs heat from the car's cabin air (inside the evaporator), it becomes a hot, high-pressure gas. The condenser's job is to release this absorbed heat to the outside environment, allowing the refrigerant to return to a liquid state and continue the cooling cycle.
-
Design and Structure:
- The condenser coil unit is typically made of aluminum or aluminum alloy, known for its excellent thermal conductivity, lightweight properties, and resistance to corrosion.
- The coil unit consists of a network of thin, flat tubes arranged in parallel rows. These tubes are connected to a series of fins, which increase the surface area available for heat dissipation. The design ensures that as much heat as possible is transferred from the refrigerant to the outside air.
-
Fins and Tubes:
- Fins: The thin metal fins attached to the tubes increase the surface area for heat exchange. As air flows over the fins, heat is transferred from the refrigerant inside the tubes to the air outside, cooling the refrigerant in the process.
- Tubes: The tubes carry the refrigerant through the condenser. As the refrigerant passes through these tubes, it cools down and condenses from a gaseous state back into a liquid state. The tubes are designed to maximize the contact between the refrigerant and the aluminum, which enhances heat transfer efficiency.
-
Heat Exchange Process:
- As the hot, high-pressure refrigerant gas enters the condenser coil, it flows through the tubes. The surrounding air, often driven by the engine fan or the vehicle's movement, flows over the fins and tubes, carrying away the heat. This process lowers the temperature of the refrigerant, causing it to condense into a liquid form.
-
Location in the Vehicle:
- The condenser coil unit is typically mounted in front of the vehicle's radiator, behind the front grille. This location allows it to receive maximum airflow while driving, which is essential for efficient cooling and condensation of the refrigerant.
-
Compatibility and Fit:
- The DENSO 477-0514 A/C condenser is specifically designed to be a direct fit replacement for certain vehicle models, ensuring compatibility and optimal performance with the existing A/C system components.
- Efficient Cooling: The condenser coil unit is vital for the A/C system's cooling efficiency. Without a properly functioning condenser, the refrigerant will not cool effectively, leading to poor A/C performance and reduced comfort inside the vehicle.
- System Protection: The condenser also plays a role in protecting other components of the A/C system, such as the compressor, by maintaining the correct refrigerant state and pressures. A malfunctioning condenser could lead to excessive pressure, potentially damaging the compressor and other components.
- To maintain the efficiency and longevity of the condenser coil unit, regular maintenance is recommended. This includes:
- Cleaning: Removing debris, dirt, and bugs that may accumulate on the condenser's surface, which can block airflow and reduce cooling efficiency.
- Inspecting for Leaks or Damage: Regularly checking for any signs of physical damage, corrosion, or leaks that could impair the condenser's functionality.
By understanding the role and function of the A/C condenser coil unit in the DENSO 477-0514, you can better appreciate its importance in the overall performance of your vehicle's air conditioning system. Proper care and timely replacement, if necessary, are key to ensuring efficient and reliable cooling.
