Answer
Aug 28, 2024 - 03:34 PM

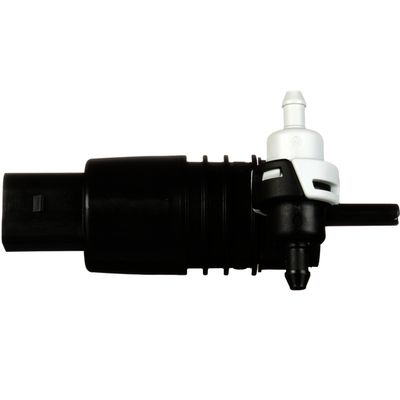

To determine if your ACI 373694 Windshield Washer Pump is faulty, you can perform a few diagnostic tests and checks:
1. Listen for Pump Operation:- When you activate the windshield washer switch, listen for a humming or buzzing sound from the pump. If there is no sound, the pump may not be receiving power or could be faulty.
- If you hear the pump operating but no fluid is coming out of the nozzles, check the washer fluid reservoir to ensure it is full.
- Inspect the washer fluid lines for any kinks, blockages, or disconnections that could prevent fluid from reaching the nozzles.
- Look for any visible leaks around the pump, washer fluid reservoir, or fluid lines. A leak can cause the pump to lose pressure and fail to deliver washer fluid effectively.
- Ensure the electrical connector to the pump is secure and free from corrosion or damage.
- Use a multimeter to test for voltage at the pump connector while activating the washer switch. If there is no voltage, there may be a problem with the wiring, fuse, relay, or switch.
- Inspect the fuse associated with the windshield washer pump circuit in the fuse box. Replace it if it is blown.
- Test or replace the relay that controls the pump, if applicable.
- Disconnect the pump from its electrical connector.
- Use jumper wires to apply 12V directly from the battery to the pump terminals. Be careful to match the polarity (positive to positive, negative to negative).
- If the pump operates when directly powered, the issue may be with the vehicle’s wiring or switch.
- If the pump does not operate even with direct power, it is likely faulty and needs replacement.
- Sometimes debris can get stuck inside the pump or its inlet, obstructing fluid flow. Remove the pump from the washer fluid reservoir and check for any obstructions. Clean the pump inlet and outlet as needed.
- If the pump operates but the fluid flow is weak or inconsistent, the pump may be wearing out or damaged internally. In this case, replacement is usually the best option.
By following these steps, you should be able to determine if your ACI 373694 Windshield Washer Pump is faulty or if there is another issue in the system causing it to malfunction.
