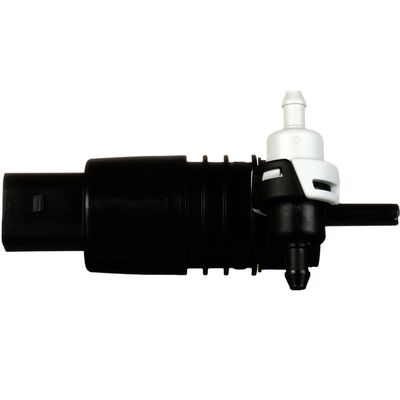

To determine if your ACI 373694 Windshield Washer Pump is faulty, you can perform several checks and tests to diagnose the issue. A faulty windshield washer pump can result from electrical problems, blockages, or the pump itself failing. Here are the steps you can follow to diagnose if your windshield washer pump is faulty:
1. Check the Washer Fluid LevelBefore assuming the pump is faulty, ensure the washer fluid reservoir is full. Sometimes, the issue may simply be due to a low fluid level, which can prevent the pump from working correctly.
- Inspect the Reservoir: Open the hood and locate the washer fluid reservoir. Check if it has enough fluid. If it's low or empty, refill it with the appropriate windshield washer fluid.
When you activate the windshield washer switch, you should hear the sound of the pump running. If you don’t hear anything, it might indicate a problem.
- Activate the Washer Switch: Turn on the ignition to the "ON" position (do not start the engine) and operate the windshield washer switch.
- Listen for Noise: Listen closely near the windshield washer fluid reservoir to hear if the pump is making a humming or buzzing noise. If you don’t hear any sound, it could be a sign that the pump is not working or not receiving power.
If you hear the pump operating but do not see any washer fluid spraying onto the windshield, the issue may be with the pump itself or a blockage in the system.
- Inspect for Fluid Spray: Activate the washer pump and observe if fluid is being sprayed onto the windshield.
- Check for Blockages: If there is no spray or it is weak, check for blockages in the washer nozzles or hoses. Clean any debris or dirt that might be blocking the nozzles.
Leaks in the washer fluid system can cause poor performance or prevent the system from working altogether.
- Check for Leaks: Look under the vehicle and around the washer fluid reservoir for any signs of leaks. If you notice fluid pooling or dripping, there may be a cracked hose, loose connection, or a damaged reservoir that needs repair.
If the pump doesn’t make any noise when activated, there might be an issue with the electrical connections or power supply.
- Inspect the Wiring and Connectors: Check the wiring and connectors leading to the pump for any signs of corrosion, damage, or loose connections.
- Use a Multimeter: To test the electrical supply to the pump, use a multimeter to check for voltage at the pump connector. Set the multimeter to DC voltage, place the red probe on the positive terminal and the black probe on the negative or ground terminal of the pump connector.
- Activate the Washer Switch: With the ignition on, activate the windshield washer switch while checking the multimeter. You should see a reading close to 12 volts if the power supply is good.
- No Voltage Reading: If there is no voltage reading, there may be an issue with the fuse, relay, switch, or wiring.
A blown fuse or faulty relay could prevent the washer pump from working.
- Locate the Fuse Box: Find the fuse box under the dashboard or hood, depending on your vehicle model.
- Check the Washer Pump Fuse: Look for the fuse designated for the windshield washer pump. Check if the fuse is blown (a blown fuse will have a broken filament or appear discolored). Replace it with a new fuse of the same amperage rating if necessary.
- Inspect the Relay: Some vehicles also have a relay that controls the washer pump. Refer to your vehicle’s owner’s manual to locate and test the relay.
If all the above checks are satisfactory, you can test the pump directly to determine if it is faulty.
- Disconnect the Pump: Disconnect the electrical connector from the pump.
- Apply Direct Power: Using jumper wires, connect the pump directly to a 12-volt power source (such as the vehicle battery). Connect one wire to the positive terminal of the battery and the pump’s positive terminal, and another wire from the negative terminal to the pump’s ground.
- Observe the Pump Operation: If the pump runs when directly powered, the issue may be with the vehicle's wiring or control circuit. If the pump does not run when directly powered, it is likely faulty and needs replacement.
If you’ve determined that the ACI 373694 Windshield Washer Pump is faulty after conducting these tests, you will need to replace it.
- Drain the Washer Fluid Reservoir: Drain the fluid from the reservoir to prevent spills.
- Remove the Faulty Pump: Disconnect the electrical connector and the washer fluid hose from the pump. Remove any mounting hardware and carefully pull out the faulty pump.
- Install the New Pump: Install the new pump by reversing the removal steps. Ensure the pump is securely mounted and all connections are tight.
- Refill the Reservoir: Refill the reservoir with windshield washer fluid and test the new pump’s operation.
By following these diagnostic steps, you can determine if your ACI 373694 Windshield Washer Pump is faulty and needs replacement. Regular maintenance and inspection of the windshield washer system can help ensure it remains functional and reliable, providing clear visibility in all driving conditions. If you are unsure about any step or lack the tools to perform these tests, consult a professional mechanic for assistance.
