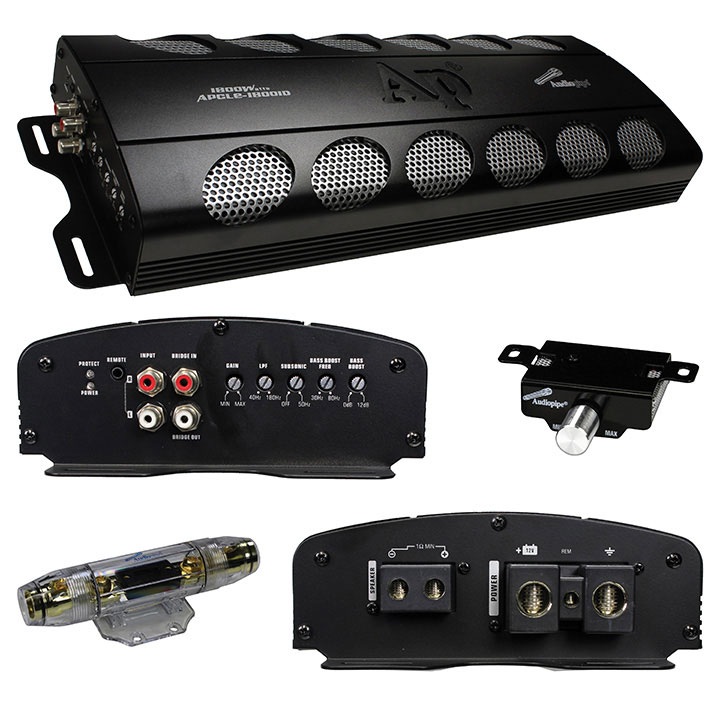

The APCLE18001D Audiopipe 1800W Class D amplifier functions as a high-power amplifier designed primarily for car audio systems, especially for driving subwoofers. Here’s an overview of how this amplifier works and the key features that enable its operation:
1. Class D Amplification Technology- Pulse-Width Modulation (PWM): The APCLE18001D is a Class D amplifier, which means it uses pulse-width modulation (PWM) to amplify the audio signal. In a Class D amplifier, the input audio signal is converted into a series of high-frequency pulses. The width of each pulse varies based on the amplitude of the audio signal, effectively encoding the audio signal in these pulses.
- Switching Transistors: The amplifier's output transistors switch on and off at high speeds (typically in the range of hundreds of kilohertz). This rapid switching allows the amplifier to efficiently control the power delivered to the speakers while minimizing energy loss as heat.
- Low-Pass Filtering: After the PWM stage, the high-frequency pulses are passed through a low-pass filter that removes the high-frequency switching noise, leaving behind the amplified audio signal that drives the subwoofer.
- 1800W Peak Power: The APCLE18001D can deliver up to 1800 watts of peak power, which makes it well-suited for driving powerful subwoofers in car audio systems. The high power output provides the necessary energy to produce deep, impactful bass.
- Efficiency: As a Class D amplifier, it is highly efficient, typically around 80-90%. This means that most of the power drawn from the vehicle's electrical system is converted into audio power, with minimal energy wasted as heat.
- RCA Inputs: The amplifier features RCA input connections, which are used to connect the signal source (like a head unit or signal processor) to the amplifier. The input sensitivity can be adjusted to match the output level of the source unit.
- Speaker Outputs: The amplifier’s output connections are designed to connect to subwoofers. It can typically handle a range of subwoofer configurations, depending on the impedance and power handling of the subwoofer(s) used.
- Gain Control: The gain control allows you to adjust the input sensitivity of the amplifier. This is important for matching the amplifier’s input level with the output level of your head unit or signal source to avoid distortion and maximize sound quality.
- Low-Pass Filter: The built-in low-pass filter allows you to control the range of frequencies sent to the subwoofer. This filter is adjustable, enabling you to tailor the bass response to your liking by cutting off higher frequencies that subwoofers aren’t designed to reproduce effectively.
- Bass Boost: The amplifier may also feature a bass boost control, which allows you to enhance the bass frequencies to add more impact to your sound system.
- Remote Level Control: Some versions of the amplifier may include a remote level control, allowing you to adjust the bass level from the driver’s seat without accessing the amplifier directly.
- Thermal Protection: The amplifier includes thermal protection circuits that shut down the amplifier if it gets too hot, preventing damage due to overheating.
- Overload Protection: It also features protection against electrical overloads, which can occur if the subwoofer impedance is too low or if there is a short circuit.
- Short Circuit Protection: The amplifier is equipped with short circuit protection to prevent damage to the internal components in case of wiring faults or other issues.
- Power and Ground Connections: Proper installation is crucial for the performance of the amplifier. The APCLE18001D requires a solid connection to the vehicle’s battery and a good ground connection to ensure stable power delivery.
- Cooling: Although Class D amplifiers generate less heat than other types, it’s still important to install the amplifier in a well-ventilated area to prevent overheating, especially if you plan to run it at high power levels for extended periods.
The APCLE18001D Audiopipe 1800W Class D amplifier functions as a highly efficient and powerful amplifier designed to drive subwoofers in a car audio system. It uses Class D technology to deliver strong bass performance with minimal heat generation. The amplifier includes adjustable controls for gain, low-pass filtering, and bass boost, allowing you to customize the sound to your preferences. With built-in protection features, it is designed to operate reliably in demanding car audio environments. Proper installation and tuning are essential to get the best performance out of this amplifier.
