Answer
Aug 20, 2024 - 08:11 AM

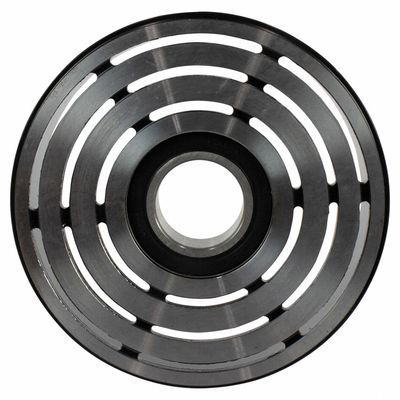

The Motorcraft YB-3289 A/C compressor clutch assembly typically consists of four main components that work together to engage and disengage the A/C compressor. Here are the four key parts:
1. Pulley- The pulley is connected to the engine’s serpentine belt and spins continuously when the engine is running. It serves as the primary interface between the engine’s drive system and the A/C compressor.
- The clutch plate is the component that engages with the pulley when the A/C system is activated. When the electromagnetic coil is energized, it pulls the clutch plate against the spinning pulley, causing the compressor shaft to rotate and drive the compressor.
- The electromagnetic coil generates a magnetic field when it is energized by an electrical current. This magnetic field pulls the clutch plate toward the pulley, engaging the compressor. When the A/C system is turned off, the coil is de-energized, and the clutch plate disengages from the pulley, stopping the compressor.
- The hub bearing allows the pulley to spin freely around the compressor shaft when the clutch is disengaged. It supports the pulley and reduces friction, ensuring smooth and quiet operation.
- Pulley: Transfers rotational motion from the engine to the compressor.
- Clutch Plate: Engages and disengages the compressor based on the A/C system's operation.
- Electromagnetic Coil: Controls the engagement of the clutch plate by generating a magnetic field.
- Hub Bearing: Allows the pulley to rotate smoothly around the stationary compressor shaft when the clutch is disengaged.
These components work together to ensure that the A/C compressor operates only when needed, optimizing both the performance of the air conditioning system and the overall efficiency of the vehicle.
