Answer
Aug 20, 2024 - 08:08 AM
If you suspect that the A/C compressor clutch on your Motorcraft YB-3289 might be stuck, there are several signs and tests you can use to confirm the issue. A stuck clutch can either be stuck engaged (causing the compressor to run continuously) or stuck disengaged (preventing the compressor from running at all). Here's how to diagnose it:
1. Visual Inspection- Locate the A/C Compressor: With the engine off, locate the A/C compressor in the engine bay. The clutch is the outermost part of the pulley on the compressor.

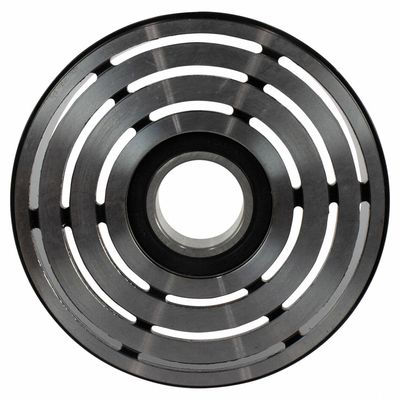

- Observe the Clutch Plate: The clutch plate is the flat, circular metal disc at the front of the pulley. When the A/C is off, this plate should not be spinning. When the A/C is turned on, the clutch should engage and the plate should spin with the pulley.
- Start the Engine: With the engine running and the A/C turned off, observe the A/C compressor pulley.
- Clutch Plate Should Be Stationary: The pulley should be spinning, but the clutch plate should remain stationary. If the clutch plate is spinning with the pulley when the A/C is off, the clutch is stuck engaged.
- Turn on the A/C: With the engine running, turn on the A/C and set it to the maximum cooling setting.
- Clutch Plate Should Engage: The clutch plate should now engage and spin with the pulley. If it does not spin, the clutch may be stuck disengaged.
- Listen for a Click: You should hear a click as the clutch engages. If you don’t hear this click and the clutch plate does not spin, the clutch could be stuck or there could be an electrical issue preventing it from engaging.
- Check the Electrical Connection: If you suspect the clutch is stuck disengaged, disconnect the electrical connector to the A/C clutch and test for continuity with a multimeter. No continuity could indicate an internal fault in the clutch coil.
- Check for Power: Use a multimeter to check if power is reaching the clutch when the A/C is turned on. If power is present and the clutch is not engaging, the clutch might be stuck or faulty.
- Manually Spin the Clutch Plate: With the engine off, try to manually spin the clutch plate (not the pulley) by hand. If the clutch is stuck, you may find it difficult or impossible to move.
- Check for Obstructions: Sometimes debris or corrosion can cause the clutch to stick. Visually inspect the clutch for any obstructions.
- Grinding or Squealing: If the clutch is stuck engaged, you might hear a grinding or squealing noise, especially if the compressor is running when it shouldn’t be.
- Rattling Noise: A stuck or failing clutch may produce a rattling sound due to worn or damaged components.
- Inconsistent A/C Performance: If the clutch is stuck engaged, the A/C compressor will run continuously, which can lead to overcooling or excessive load on the engine. If it’s stuck disengaged, the A/C will not cool at all.
By performing these checks, you should be able to determine whether your Motorcraft YB-3289 A/C compressor clutch is stuck. If you confirm the clutch is stuck, it’s usually necessary to replace the clutch assembly or, in some cases, the entire compressor, depending on the extent of the issue. If you’re unsure or uncomfortable performing these checks, it’s best to consult a professional mechanic.
