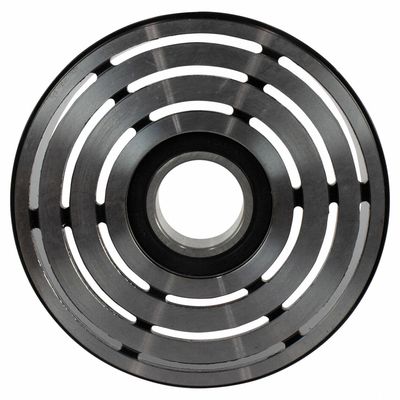

Measuring the pulley of a Motorcraft YB-3289 A/C compressor involves determining its diameter, width, and groove details. Accurate measurements are crucial for ensuring compatibility with the belt and proper function within the A/C system. Here’s how you can measure the A/C compressor pulley:
Tools Needed:- Caliper (preferably digital for precision)
- Tape measure or ruler
- Flat surface for laying the pulley down (if removed)
1. Measure the Outer Diameter
- Remove the pulley from the compressor if possible for the most accurate measurement. If you can't remove it, ensure the belt is off and you can access the pulley easily.
- Place the caliper across the widest part of the pulley (outer edges of the pulley’s rim).
- Record the measurement, which is the outer diameter of the pulley.
2. Measure the Groove Width
- If the pulley has grooves (which it typically does for the serpentine belt), measure the width of one groove.
- Use the caliper to measure the distance between the sides of one groove (measuring from inside edge to inside edge).
- This measurement is the groove width.
3. Count the Number of Grooves
- Count the number of grooves on the pulley. This is important for ensuring the correct belt fit.
4. Measure the Pulley Width
- Measure the total width of the pulley from one edge to the other. This includes the flat area and any grooves present.
- Record this as the total width of the pulley.
5. Measure the Inner Diameter (if necessary)
- If you need to measure the bore (inner diameter) where the pulley mounts to the compressor shaft, use the caliper to measure across the inner opening.
- This measurement ensures the pulley fits properly on the compressor shaft.
- Precision is Key: Use a digital caliper for the most accurate measurements, especially for groove width and inner diameter.
- Consult the Manual: Refer to the A/C system or vehicle manual to compare your measurements with the recommended pulley specifications.
- Check Belt Compatibility: Ensure the measurements correspond with the specifications of the belt you're using to avoid slippage or improper function.
Accurately measuring the Motorcraft YB-3289 A/C compressor pulley is essential for proper fitment and operation within the A/C system. Following these steps will help ensure you gather the correct dimensions for compatibility with other components.
