Answer
Aug 16, 2024 - 04:15 PM

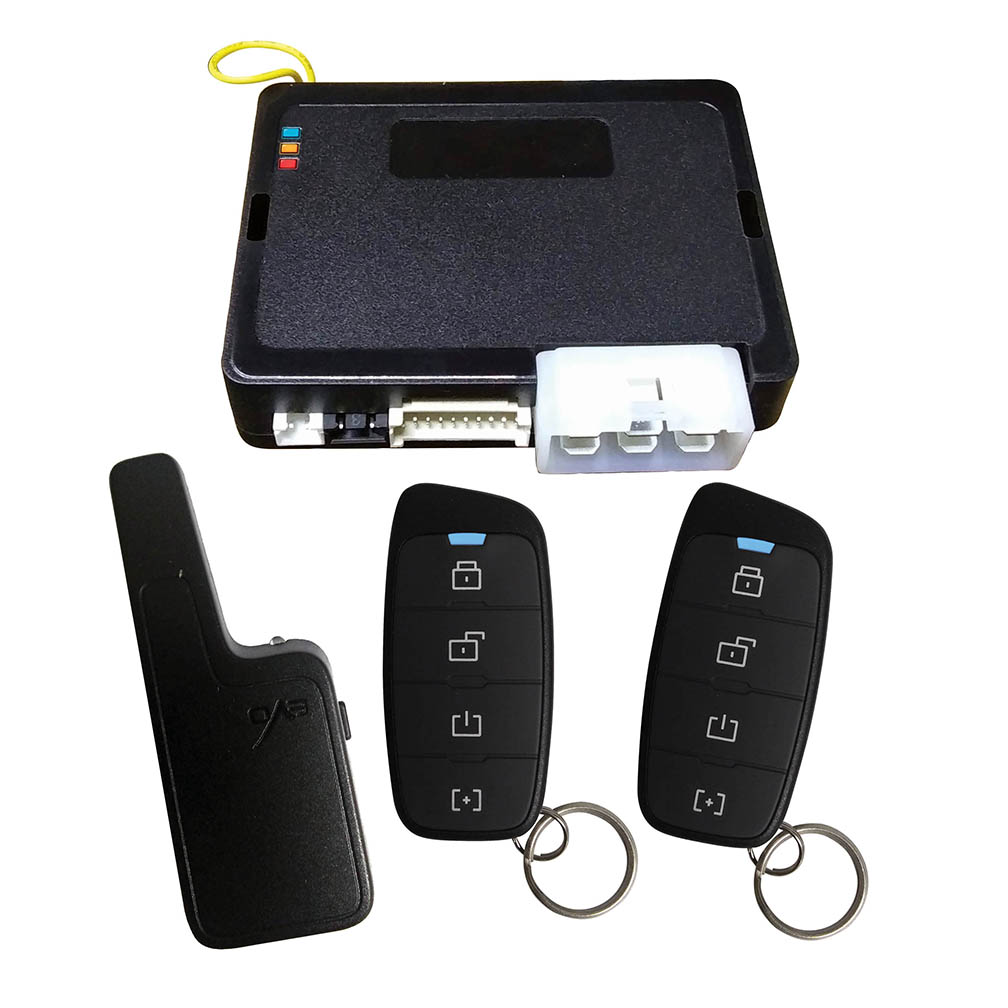

Programming the EVOONE442 Fortin EVO-ONE Remote Starter involves several steps that require both preparation and careful execution. Here’s a detailed guide on how to program the system:
1. Preparation- Tools Required:
- Fortin FlashLink Updater tool (a USB interface for programming).
- A computer with internet access.
- Fortin FlashLink Manager software installed on your computer.
- Gather Vehicle Information:
- Know the make, model, and year of your vehicle.
- Identify the type of key (regular, transponder, or smart key) your vehicle uses.
- Physical Connection:
- Connect the EVO-ONE module to your computer using the FlashLink Updater tool.
- Software Setup:
- Open the FlashLink Manager software on your computer. Ensure that the software recognizes the connected EVO-ONE unit.
- Firmware Updates:
- Check for any available firmware updates. Flash the latest firmware onto the EVO-ONE to ensure compatibility with your vehicle.
- Select Vehicle Profile:
- In the FlashLink Manager, choose your vehicle's make, model, and year. This will load the correct settings and bypass options specific to your vehicle.
- Programming:
- Once you've selected the appropriate vehicle profile, click to flash the unit. This process loads the necessary data, settings, and firmware onto the EVO-ONE module.
- Save and Disconnect:
- After the flashing process is complete, save the configuration. Then, safely disconnect the EVO-ONE from your computer.
- Wiring:
- Follow the wiring diagram provided by Fortin for your specific vehicle. The EVO-ONE will need to be connected to the vehicle’s ignition system, data bus (CANBUS), and other required circuits.
- Check Connections:
- Double-check all wiring connections to ensure they are secure and correctly routed. Improper wiring can lead to programming errors.
- Enter Programming Mode:
- Some vehicles require entering a special programming mode to sync the EVO-ONE with the vehicle’s systems. This often involves turning the ignition on and off in a specific sequence or using a programming button on the EVO-ONE.
- Follow Instructions:
- The FlashLink Manager or installation guide will provide step-by-step instructions tailored to your vehicle for this process.
- Immobilizer Bypass:
- If your vehicle has an immobilizer system (common in vehicles with transponder or smart keys), you may need to program the immobilizer bypass.
- Specific Steps:
- Depending on the vehicle, you might need to insert the key, turn the ignition to "On," and then follow specific prompts on the EVO-ONE (such as pressing a button or watching for certain indicator lights).
- Remote Start Test:
- After programming, test the remote start function. Use the key fob or smartphone app (if applicable) to initiate a remote start. Verify that the engine starts and that any other programmed features (like defrosters or heated seats) activate correctly.
- Check Additional Features:
- Test features like door locks, trunk release, and any security system integration.
- Runtime Settings:
- You can program the runtime for the remote start (e.g., how long the engine runs before shutting off) using the FlashLink Manager.
- Other Customizations:
- Adjust any other preferences, such as how the parking lights flash or the duration of the remote start.
- Mounting the Module:
- Once everything is tested and working, securely mount the EVO-ONE module in a hidden, safe location within the vehicle.
- Reassemble Panels:
- Reattach any panels or trim pieces that were removed during installation.
- Error Indicators:
- If any issues arise, check for error codes or flashing indicator lights on the EVO-ONE module. Refer to the installation guide or Fortin’s support resources for troubleshooting steps.
- Reprogramming:
- If necessary, reconnect the EVO-ONE to the FlashLink Updater and adjust the settings or reflash the unit.
- Module Installation:
- If you’ve purchased an optional smartphone control module, follow the instructions to pair it with the EVO-ONE.
- App Setup:
- Download and install the corresponding app, and complete the setup to control the remote start via your phone.
If at any point the process becomes unclear or complex, or if you encounter issues that you cannot resolve, it is advisable to seek professional installation assistance. Proper installation and programming are critical to the correct and safe operation of the EVO-ONE system.
