Answer
Aug 16, 2024 - 07:44 AM

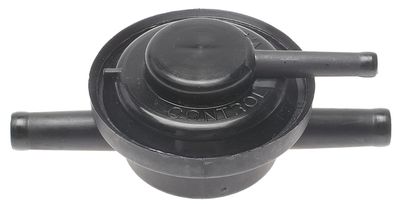

The ACDelco 214-2294 Purge Valve is signaled to open by the Engine Control Unit (ECU), also known as the Engine Control Module (ECM). The ECU controls the purge valve as part of the vehicle's Evaporative Emission Control (EVAP) system. Here’s how the process works:
1. Input from Various Sensors- The ECU monitors several engine operating conditions through various sensors, including:
- Engine Coolant Temperature Sensor: Ensures the engine is at the proper operating temperature before purging fuel vapors.
- Throttle Position Sensor (TPS): Provides data on throttle position to ensure the purge valve opens during appropriate engine load conditions.
- Manifold Absolute Pressure (MAP) Sensor or Mass Air Flow (MAF) Sensor: Helps the ECU determine the engine's load and whether it is suitable to introduce fuel vapors.
- Oxygen Sensors (O2 Sensors): Monitor the air-fuel ratio in the exhaust to ensure proper combustion.
- The ECU will only signal the purge valve to open when certain conditions are met to optimize the combustion process and ensure the vehicle's emissions stay within regulatory limits:
- Engine at Operating Temperature: The engine needs to be warmed up to ensure proper vaporization and combustion of fuel vapors.
- Throttle Position: The throttle must be in a position where the introduction of fuel vapors will not disrupt engine performance. Typically, the valve opens when the throttle is partially open, indicating that the engine is under load and can effectively burn the added vapors.
- No Detected EVAP Leaks: The ECU checks for leaks in the EVAP system before allowing the purge valve to open. If a leak is detected (through a pressure or vacuum test), the purge valve may remain closed to prevent unmetered air from entering the intake manifold.
- Electrical Signal: Once the ECU determines the conditions are correct, it sends an electrical signal (typically a 12-volt pulse-width modulation signal) to the purge valve solenoid. This signal causes the solenoid to open the valve, allowing fuel vapors from the charcoal canister to flow into the engine’s intake manifold.
- Variable Control: The ECU can vary the duty cycle of the signal to control the amount of time the purge valve stays open, thereby regulating the amount of fuel vapor introduced into the engine. This allows the ECU to maintain an optimal air-fuel ratio.
- With the purge valve open, the stored fuel vapors are drawn into the intake manifold and mixed with the incoming air. These vapors are then burned in the combustion chambers, reducing overall emissions and preventing fuel vapor loss to the atmosphere.
The ACDelco 214-2294 Purge Valve is signaled to open by the Engine Control Unit (ECU) based on data from various engine sensors. The ECU determines the optimal time to open the valve by considering engine temperature, throttle position, engine load, and the status of the EVAP system. Once these conditions are met, the ECU sends an electrical signal to the purge valve to open, allowing stored fuel vapors to be directed into the engine’s intake manifold for combustion.
