Answer
Aug 16, 2024 - 07:41 AM

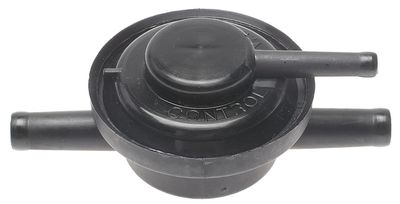

The ACDelco 214-2294 Vapor Canister Purge Valve is an essential component of your vehicle's evaporative emission control (EVAP) system. Here’s how it works:
1. Role in the EVAP System- The EVAP system captures fuel vapors that would otherwise escape from the fuel tank and enter the atmosphere, contributing to air pollution. These vapors are stored in a charcoal canister until they can be safely burned in the engine.
- The purge valve controls the flow of fuel vapors from the charcoal canister to the engine’s intake manifold. It acts as a gateway, opening at the appropriate times to allow the vapors to be drawn into the engine, where they are mixed with air and burned during the combustion process.
- Normally Closed Position: When the engine is off or during certain operating conditions (such as cold starts), the purge valve remains closed. This prevents the fuel vapors from entering the intake manifold.
- Signal from the Engine Control Unit (ECU): The vehicle’s engine control unit (ECU) monitors various parameters, such as engine temperature, load, and speed, to determine the optimal time to purge the fuel vapors. When the conditions are right, the ECU sends an electrical signal to the purge valve.
- Opening the Valve: Upon receiving the signal, the purge valve opens, allowing the fuel vapors stored in the charcoal canister to flow into the intake manifold. The amount of vapor allowed through is controlled by the ECU, which adjusts the valve's opening based on engine demand and emissions control requirements.
- Mixing with Intake Air: The vapors mix with the incoming air in the intake manifold and are then drawn into the cylinders for combustion. This process not only prevents harmful emissions but also allows the engine to use the otherwise wasted fuel vapors, contributing to improved fuel efficiency.
- Once the purging cycle is complete, or if the engine conditions change, the ECU signals the purge valve to close, stopping the flow of vapors from the canister. The valve remains closed until the ECU determines that another purge cycle is necessary.
- The purge valve is designed to fail in a closed position in most cases. This prevents uncontrolled release of fuel vapors into the engine, which could lead to rough idling, engine stalling, or an overly rich air-fuel mixture.
The ACDelco 214-2294 Vapor Canister Purge Valve plays a critical role in the EVAP system by controlling the release of stored fuel vapors from the charcoal canister to the engine's intake manifold. It opens and closes based on signals from the engine control unit (ECU) to ensure that fuel vapors are burned efficiently during combustion, thereby reducing emissions and improving fuel economy. Proper functioning of the purge valve is crucial for maintaining the vehicle's emission control system and overall engine performance.
