Answer
Aug 15, 2024 - 03:06 PM
n a typical steering system, there are usually four tie rod ends:
-
Two Inner Tie Rod Ends: These are connected to the steering rack or center link. They play a crucial role in transmitting steering input from the steering gear to the outer tie rods.
-

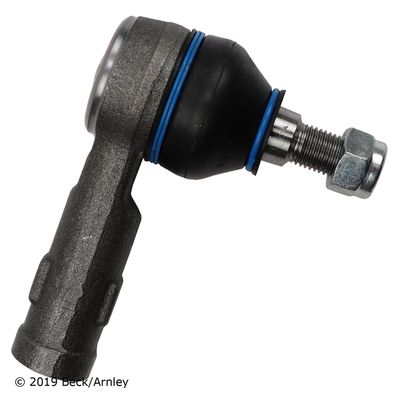

Two Outer Tie Rod Ends: These connect the inner tie rods to the steering knuckles, directly influencing the turning of the wheels. The ACDelco 84670799 tie rod end would typically be an outer tie rod end.
Each front wheel typically has one inner and one outer tie rod end, making a total of four tie rod ends for the front wheels in a typical rack-and-pinion steering system.
If your vehicle is front-wheel-drive or all-wheel-drive with independent suspension, this is the usual configuration. In some older vehicles with steering systems like recirculating ball steering, the setup can be slightly different, but the number of tie rod ends usually remains the same.
Summary:A typical steering system will have four tie rod ends: two inner and two outer, with the ACDelco 84670799 typically being one of the outer tie rod ends.
