Answer
Aug 15, 2024 - 07:51 AM

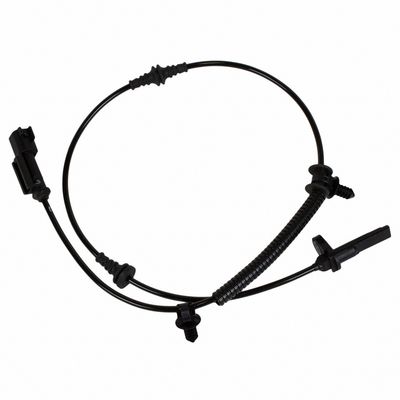

The specific resistance value for the Motorcraft BRAB-404 ABS Wheel Speed Sensor can vary slightly depending on the design and application, but typically, ABS wheel speed sensors have a resistance range between 800 ohms and 2,500 ohms.
For the most accurate resistance value for the BRAB-404 sensor in your specific vehicle, it's best to refer to the vehicle's service manual or technical specifications. This manual should provide the exact resistance range expected for the sensor used in your particular make and model.
How to Measure the Resistance:- Set the Multimeter to Ohms: Choose the appropriate resistance setting on your multimeter.
- Disconnect the Sensor: Disconnect the sensor from the vehicle's wiring harness to isolate it.
- Measure the Resistance: Place the multimeter probes on the sensor's terminals and read the resistance.
If the resistance reading falls outside the expected range (either too high, too low, or infinite), the sensor may be faulty and require replacement.
