Answer
Aug 15, 2024 - 07:23 AM

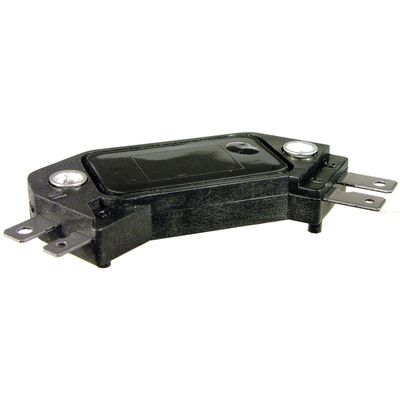

Testing the ACDelco D1906 Ignition Control Module (ICM) involves a few steps to check if it's functioning correctly. You'll need a multimeter for this process. Here’s a step-by-step guide:
1. Safety First:- Ensure the vehicle is turned off, the keys are out of the ignition, and the battery is disconnected to prevent any electrical shock or damage.
- The ICM is typically mounted near or on the engine block, often near the distributor or ignition coils. Refer to your vehicle’s service manual for the exact location.
- Inspect the ICM for any obvious signs of damage such as cracks, corrosion, or burned components. Physical damage can often indicate a faulty module.
- Set the Multimeter: Turn the multimeter to the “ohms” setting to measure resistance.
- Test the Terminals: Check the resistance between the module's terminals. You should have the specific resistance values for your vehicle from a service manual. Typically, resistance should not be infinite (open) or zero (short). If it is, the ICM may be faulty.
- Reconnect the Battery: Reconnect the vehicle’s battery.
- Set the Multimeter: Turn the multimeter to the “volts” setting to measure DC voltage.
- Test Voltage: With the ignition key in the "ON" position (engine not running), test the voltage at the ICM's power supply terminal. You should get a reading of around 12 volts. If there is no voltage or it is significantly lower, there could be an issue with the power supply to the module.
- Probe the Output Terminals: Check for a pulsing voltage at the output terminals when the engine is cranked (use an assistant to crank the engine while you test). The ICM should send a signal to the ignition coil during cranking.
- Check for Consistency: The voltage should pulse as the engine turns over. If there is no pulsing signal or it's inconsistent, the ICM might be faulty.
- Ensure the ICM has a good ground connection. Set the multimeter to “continuity” mode and check between the ICM's ground terminal and a known good ground on the vehicle. You should have continuity; if not, inspect the ground wiring.
- If the ICM passes all these tests but the vehicle is still not starting or has ignition problems, other components such as the ignition coil, spark plugs, or wiring should be checked. If any of the tests fail, the ICM likely needs to be replaced.
- Some modern vehicles require a scan tool to diagnose ignition issues accurately. If available, using a scan tool to check for error codes related to the ignition system can help pinpoint the issue.
If you’re unsure about performing these tests, it’s advisable to have a professional mechanic diagnose and test the ICM for you.
