Determining the correct size for a Walker Exhaust 35337 Clamp involves measuring the diameter of the exhaust pipes or components you need to join. Here’s how you can accurately determine the correct size:
1. Measure the Diameter of the Exhaust Pipe:
- Tools Needed: Tape measure or caliper.
- Steps:
- Locate the Exhaust Pipe: Identify the specific part of the exhaust system where you plan to install the clamp.
- Measure the Outer Diameter (OD): Use a tape measure or caliper to measure the outer diameter of the exhaust pipe at the point where the clamp will be installed. Measure across the widest part of the pipe, from one outer edge to the other.
- Record the Measurement: Note down the measurement in inches or millimeters.
2. Compare with the Clamp Size:
- Clamp Specifications: The Walker Exhaust 35337 Clamp is designed to fit a specific pipe size. The size of the clamp you need should match the outer diameter of your exhaust pipe.
- Check Packaging or Specifications: Verify the size of the Walker 35337 clamp, which should be indicated on the packaging or in the product specifications. The size typically refers to the inner diameter of the clamp when it’s fully tightened.
3. Consider Pipe Overlaps:
- Pipe Overlap: If you are connecting two pipes with a slip joint (one pipe slips into the other), measure the outer diameter of the larger (outer) pipe.
- Ensure Proper Fit: The clamp should fit snugly around the pipe without being too tight or too loose. A clamp that is too small will not fit over the pipe, while a clamp that is too large may not provide a secure seal.
4. Consult Vehicle or Component Specifications:
- Vehicle Specifications: If available, check the vehicle’s repair manual or the specifications of the exhaust components for the recommended clamp size.
- Replacement Part Matching: If you are replacing an old clamp, you can measure the old clamp’s size or check its part number to find an equivalent replacement.
5. Example Size Reference:
- For instance, if the exhaust pipe’s outer diameter measures 2.5 inches, you would need a clamp designed for a 2.5-inch pipe. Make sure the Walker Exhaust 35337 Clamp matches this measurement.
Conclusion:
By measuring the outer diameter of the exhaust pipe and ensuring that it matches the clamp size, you can select the correct Walker Exhaust 35337 Clamp for your needs. Proper sizing is essential for ensuring a secure and leak-free connection in your exhaust system. If you're unsure, it's always a good idea to consult a professional or refer to the vehicle's specifications for guidance.
4o
ChatGPT said:
ChatGPT
No, not all exhaust clamps are the same. Exhaust clamps come in various types, sizes, and designs, each intended for specific applications and purposes within an exhaust system. Here’s an overview of the different types of exhaust clamps and their characteristics:

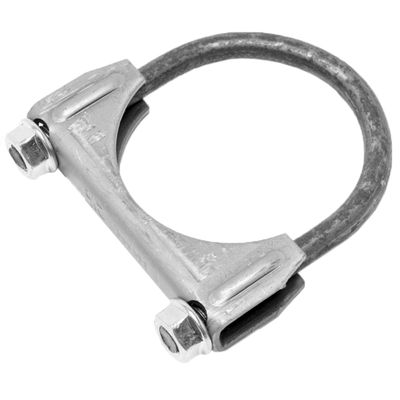

1. U-Bolt Clamps:
- Description: This is one of the most common types of exhaust clamps. It consists of a U-shaped bolt and a saddle that tightens around the exhaust pipe when the nuts on the U-bolt are tightened.
- Uses: U-bolt clamps are often used for general-purpose applications, such as connecting exhaust pipes, mufflers, or tailpipes. They are reliable but can crush the pipe if overtightened.
- Strengths: Simple design, widely available, affordable.
- Limitations: Can deform or crush the exhaust pipe, which might lead to restricted exhaust flow.
2. Band Clamps:
- Description: Band clamps consist of a wide, flexible metal band that wraps around the exhaust pipe and tightens with a bolt. They are available in various widths and sizes.
- Uses: Ideal for joining two sections of exhaust pipe without deforming them. Often used in performance exhaust systems or for sealing joints without welding.
- Strengths: Provides a secure, leak-free seal without crushing the pipe; easy to install and remove.
- Limitations: More expensive than U-bolt clamps and may not provide as much clamping force.
3. Lap Joint Clamps:
- Description: These clamps are designed to connect pipes of different sizes that overlap, such as in slip-fit connections. They feature a stepped or layered design that matches the overlapping pipes.
- Uses: Commonly used in situations where two different-sized pipes need to be joined, such as when installing aftermarket exhaust components.
- Strengths: Provides a strong seal for overlapping pipe joints, easy to install, and minimizes exhaust leaks.
- Limitations: Limited to specific applications where pipes overlap.
4. V-Band Clamps:
- Description: V-band clamps consist of a V-shaped band that wraps around specially machined flanges on exhaust components. The clamp uses a T-bolt to tighten and secure the joint.
- Uses: Commonly used in high-performance and turbocharged applications due to their ability to provide a very strong, leak-proof connection that can withstand high temperatures and pressures.
- Strengths: Extremely secure, easy to assemble and disassemble, ideal for applications where frequent disassembly is required.
- Limitations: More expensive and requires special flanges, not as common in standard exhaust systems.
5. Flat Band Clamps:
- Description: Similar to band clamps, but typically wider and flatter, providing a larger surface area for sealing the exhaust joint.
- Uses: Ideal for securing large diameter pipes or for applications where a broad clamping surface is needed.
- Strengths: Distributes clamping force evenly, reducing the risk of leaks.
- Limitations: May be bulkier than other clamp types.
6. Step Clamps:
- Description: Step clamps are designed to join pipes of slightly different diameters by incorporating a step in the clamp’s design that matches the pipes’ diameters.
- Uses: Used in specific applications where one pipe fits into another with a slight size difference.
- Strengths: Provides a tailored fit for mismatched pipe sizes.
- Limitations: Only suitable for specific size differences.
7. Muffler Clamps:
- Description: Muffler clamps are typically U-bolt clamps but may have larger, reinforced saddles designed to fit the contour of mufflers or larger exhaust components.
- Uses: Primarily used to secure mufflers to the exhaust system.
- Strengths: Designed specifically for the contours and sizes of mufflers.
- Limitations: Similar to U-bolt clamps in terms of potential to crush the pipe.
Conclusion:
Exhaust clamps vary in design, purpose, and application. The choice of clamp depends on the specific requirements of the exhaust system, including the type of connection, the size of the pipes, and the desired level of sealing and clamping force. Choosing the right clamp is essential for ensuring a secure, leak-free connection that maintains the integrity and performance of the exhaust system.
