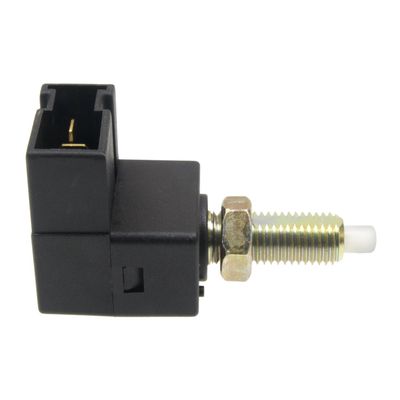

The Beck/Arnley 201-1818 Brake Light Switch controls several critical functions in a vehicle, many of which are essential for safety and proper vehicle operation. Here’s a breakdown of the key functions:
1. Brake Light Activation:
- Function: The primary function of the brake light switch is to turn on the brake lights when the brake pedal is pressed. This alerts drivers behind you that you are slowing down or stopping.
- Importance: Properly functioning brake lights are crucial for preventing rear-end collisions.
2. Cruise Control Disengagement:
- Function: The brake light switch is used to disengage the cruise control system when the brake pedal is pressed.
- Importance: This ensures that the driver can immediately regain manual control of the vehicle's speed when braking.
3. Transmission Interlock (Automatic Vehicles):
- Function: In vehicles with automatic transmissions, the brake light switch controls the transmission interlock system, which prevents the vehicle from being shifted out of "Park" unless the brake pedal is pressed.
- Importance: This safety feature prevents accidental or unintended vehicle movement, reducing the risk of accidents.
4. ABS and Stability Control Systems:
- Function: The brake light switch provides a signal to the Anti-lock Braking System (ABS) and electronic stability control systems when the brakes are applied.
- Importance: These systems use the signal to modulate braking pressure and help maintain control of the vehicle during emergency braking or slippery conditions.
5. Engine Management and Start/Stop Systems:
- Function: In some vehicles, the brake light switch interacts with the engine management system or start/stop systems.
- Importance: For vehicles with push-button start systems, the brake pedal must be pressed to start the engine. In vehicles with start/stop systems, the brake light switch signal may help control engine restarts.
6. Fault Diagnostics:
- Function: The brake light switch is monitored by the vehicle's onboard diagnostic system. If the switch fails or functions incorrectly, it can trigger diagnostic trouble codes (DTCs) and warning lights on the dashboard.
- Importance: This helps alert the driver to potential issues with the brake light circuit or related systems, allowing for timely repairs.
Summary:
The Beck/Arnley 201-1818 Brake Light Switch is a multi-functional component that plays a vital role in vehicle safety and operation. It controls the brake lights, disengages the cruise control, ensures the proper functioning of the transmission interlock, interacts with ABS and stability control systems, and can even influence engine start/stop functions. Any failure of this switch can have significant implications for the vehicle's safety systems, so ensuring it is in good working condition is essential.
4o
ChatGPT said:
ChatGPT
Troubleshooting a Beck/Arnley 201-1818 Brake Light Switch involves several steps to diagnose whether the switch is functioning correctly. Here’s a guide to help you identify and resolve issues with the brake light switch:
1. Check the Brake Lights:
- Symptoms: If the brake lights do not turn on when the pedal is pressed, or if they stay on continuously, it may indicate a problem with the brake light switch.
- Steps:
- Have someone stand behind the vehicle while you press the brake pedal to check if the brake lights illuminate.
- If the brake lights do not respond as expected, proceed to the next steps.
2. Inspect the Brake Light Switch:
- Location: The brake light switch is usually located near the top of the brake pedal assembly.
- Visual Inspection:
- Look for obvious signs of damage, such as broken wires, loose connections, or corrosion.
- Ensure the switch is securely mounted and that the brake pedal properly engages or disengages the switch when pressed or released.
3. Check the Fuse:
- Symptoms: A blown fuse can prevent the brake lights from functioning, even if the switch is working.
- Steps:
- Locate the fuse box (usually under the dashboard or in the engine compartment) and find the fuse related to the brake lights.
- Check if the fuse is blown (the metal strip inside will be broken). If it is, replace it with a fuse of the same rating.
4. Test the Brake Light Switch with a Multimeter:
- Tools Needed: Multimeter (set to measure continuity or resistance).
- Steps:
- Disconnect the Switch: Locate the brake light switch near the brake pedal and disconnect the electrical connector.
- Test Continuity:
- With the brake pedal not pressed, place the multimeter probes on the two terminals of the brake light switch.
- There should be no continuity (open circuit) when the pedal is not pressed.
- Press the brake pedal and test again. There should be continuity (closed circuit) when the pedal is pressed.
- Interpret the Results:
- If there’s no continuity when the pedal is pressed, or if there’s continuity when the pedal is not pressed, the switch is likely faulty and should be replaced.
5. Check the Electrical Connections:
- Symptoms: Loose or corroded connections can cause the switch to malfunction.
- Steps:
- Inspect the wiring harness connected to the brake light switch.
- Ensure all connections are secure and free of corrosion or damage.
- Repair or replace any damaged wires or connectors.
6. Check for Intermittent Issues:
- Symptoms: If the brake lights work sporadically, the switch may have an internal fault.
- Steps:
- Press the brake pedal multiple times while monitoring the brake lights. If the lights behave inconsistently, the switch might be failing intermittently.
7. Replace the Brake Light Switch:
- When to Replace: If the switch fails any of the above tests or if it shows signs of physical damage, it’s best to replace it with a new Beck/Arnley 201-1818 Brake Light Switch.
- Replacement Steps:
- Disconnect the old switch by removing the mounting hardware and electrical connector.
- Install the new switch, ensuring it is properly aligned with the brake pedal and securely fastened.
- Reconnect the electrical connector and test the brake lights again to confirm proper operation.
Conclusion:
By following these troubleshooting steps, you can identify whether the Beck/Arnley 201-1818 Brake Light Switch is the source of the issue and take the necessary steps to repair or replace it. If the problem persists after these checks, it might be best to consult a professional mechanic for further diagnosis.
