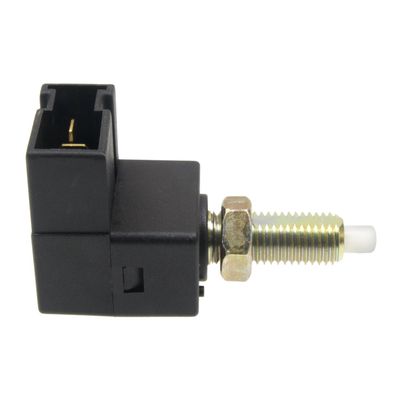

The brake pedal switch signal in the Beck/Arnley 201-1818 Brake Light Switch primarily indicates the position of the brake pedal. This signal has several important functions in a vehicle's electrical and safety systems:
1. Brake Light Activation:- Signal Purpose: When the brake pedal is pressed, the brake pedal switch closes the electrical circuit, sending a signal to activate the brake lights.
- Function: This is the most direct and visible function of the brake pedal switch. The brake lights illuminate, signaling to drivers behind you that you are slowing down or stopping.
- Signal Purpose: The brake pedal switch sends a signal to the vehicle's cruise control system when the brake pedal is pressed.
- Function: This signal automatically disengages the cruise control when you apply the brakes, allowing you to regain manual control of the vehicle's speed.
- Signal Purpose: In vehicles with automatic transmissions, the brake pedal switch signal is used to engage or disengage the transmission interlock.
- Function: This safety feature prevents the vehicle from being shifted out of "Park" unless the brake pedal is pressed. The brake pedal switch signal ensures that the vehicle cannot be accidentally moved without the driver intentionally pressing the brake.
- Signal Purpose: The brake pedal switch signal is also used by the Anti-lock Braking System (ABS) and stability control systems.
- Function: These systems use the signal to monitor when the brakes are applied and to modulate braking pressure as needed to prevent wheel lockup or maintain vehicle stability.
- Signal Purpose: In some vehicles, the brake pedal switch signal is integrated into the engine management system or start/stop systems.
- Function: The signal can be used to trigger engine start or stop functions, particularly in vehicles equipped with push-button start systems, where pressing the brake pedal is required to start the engine.
- Signal Purpose: The brake pedal switch signal is monitored by the vehicle's onboard diagnostic system.
- Function: If the brake pedal switch fails or behaves erratically, the vehicle's computer may store a diagnostic trouble code (DTC) and trigger a warning light on the dashboard, indicating a potential issue with the brake light circuit or related systems.
The brake pedal switch signal from the Beck/Arnley 201-1818 Brake Light Switch is crucial for multiple vehicle functions beyond just illuminating the brake lights. It plays a key role in ensuring the safety and proper operation of systems like cruise control, transmission interlock, ABS, and more. If this signal is faulty, it can lead to issues with these systems, making it important to ensure that the brake light switch is functioning correctly.
