Is there a wiring diagram for the 4 pins?

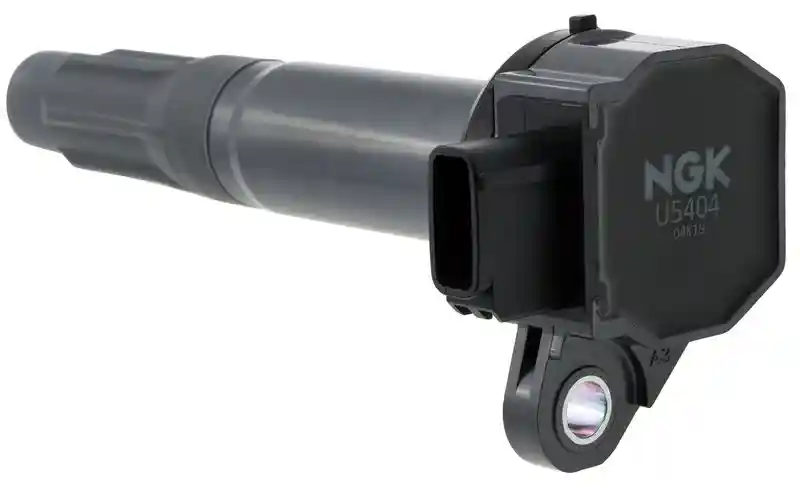

NGK 49187 Ignition Coil
I am considering converting to a CoP system and need a "Smart" coil (internal igniter) because of ECU limitations. I am assuming that any "smart" coil will work and I only need to consider fit (primarily pencil length) but I need to know terminal wiring positions for 12V, grounds and trigger erc.
Status:
Open Jun 15, 2024 - 09:52 PM
1answer
Answer
Jun 17, 2024 - 08:10 AM
Yes, you are correct about the pencil length. Below is a typical diagram for Subaru's NGK 49187 Ignition Coil. The pinout is as follows: - Pin 1: 5V input for the "1-2" coil - Pin 2: 12V - Pin 3: Ground - Pin 4: 5V input for the "3-4" coil The part will include the diagram in the instructions. Please let us know if you have any other questions.
